961 Stainless Steel (S47310/13Cr11Ni2W2MoV) – Martensitic Heat-Resistant Steel
Premium Quality from FUSHUN SPECIAL STEEL – Your Trusted Manufacturer for High-Temperature Applications
Introduction and Applications
961 stainless steel, also known as 3И961, is a premium martensitic heat-resistant stainless steel originally developed in the Soviet Union. This high-performance alloy is designated as S47310 under UNS numbering system, with Chinese designations including 13Cr11Ni2W2MoV (new standard) and 1Cr11Ni2W2MoV (former standard). As a professional stainless steel manufacturer, FUSHUN SPECIAL STEEL provides this material with guaranteed quality and competitive pricing for bulk orders.
Key Applications
Aerospace Components
Aircraft engine compressor blades, turbine discs, and structural components operating at temperatures up to 600°C.
High-Temperature Fasteners
Bolts, studs, and nuts for power generation equipment, petrochemical plants, and industrial turbines requiring excellent creep resistance.
Chemical Composition
The carefully balanced chemical composition of 961 stainless steel ensures optimal high-temperature strength and corrosion resistance. FUSHUN SPECIAL STEEL maintains strict control over all elements through advanced melting processes.
| C | Cr | Ni | W | Mo | V | Si | Mn |
|---|---|---|---|---|---|---|---|
| 0.10-0.16 | 10.5-12.0 | 1.50-2.00 | 1.50-2.00 | 0.35-0.50 | 0.18-0.30 | ≤0.60 | ≤0.60 |
Note: P ≤0.030%, S ≤0.020%. All values in weight percentage.
Mechanical Properties
961 stainless steel exhibits exceptional mechanical properties after proper heat treatment, making it ideal for demanding high-temperature applications. The following properties are typical values after standard quenching and tempering.
| Property | Value | Unit |
|---|---|---|
| Tensile Strength (Rm) | ≥1080 | MPa |
| Yield Strength (Rp0.2) | ≥835 | MPa |
| Elongation (A) | ≥10 | % |
| Reduction of Area (Z) | ≥40 | % |
| Impact Energy (KV) | ≥39 | J |
| Hardness | 32-40 | HRC |
High-Temperature Properties (at 600°C)
| Tensile Strength at 600°C | ≥590 MPa |
| Yield Strength at 600°C | ≥490 MPa |
Heat Treatment
Proper heat treatment is essential to achieve the optimal mechanical properties of 961 stainless steel. FUSHUN SPECIAL STEEL offers in-house heat treatment services with precise temperature control and documentation.
Quenching
Temperature: 1000-1050°C
Cooling: Oil quenching or air cooling
Tempering
Temperature: 620-680°C
Cooling: Air cooling, double tempering recommended
Annealing (for machining)
Heat to 850-880°C, hold for adequate time, then furnace cool to 500°C, followed by air cooling. Annealed hardness: ≤255 HB.
Equivalent Standards and Designations
961 stainless steel corresponds to various international standards. FUSHUN SPECIAL STEEL can supply material certified to customer-specified standards.
| Standard | Designation |
|---|---|
| USA (ASTM/UNS) | ASTM A473 S47310, UNS S47310 |
| China (GB) | 13Cr11Ni2W2MoV (new), 1Cr11Ni2W2MoV (former) |
| Russia (GOST) | 3И961 (Original designation) |
| Europe (EN/DIN) | Similar to X12CrNiWMoV12-2-2 |
| Japan (JIS) | Similar to SUH616 |
Available Forms and Sizes
As a specialized steel manufacturer, FUSHUN SPECIAL STEEL produces 961 stainless steel through hot rolling and hot forging processes in multiple product forms.
Hot Rolled Products

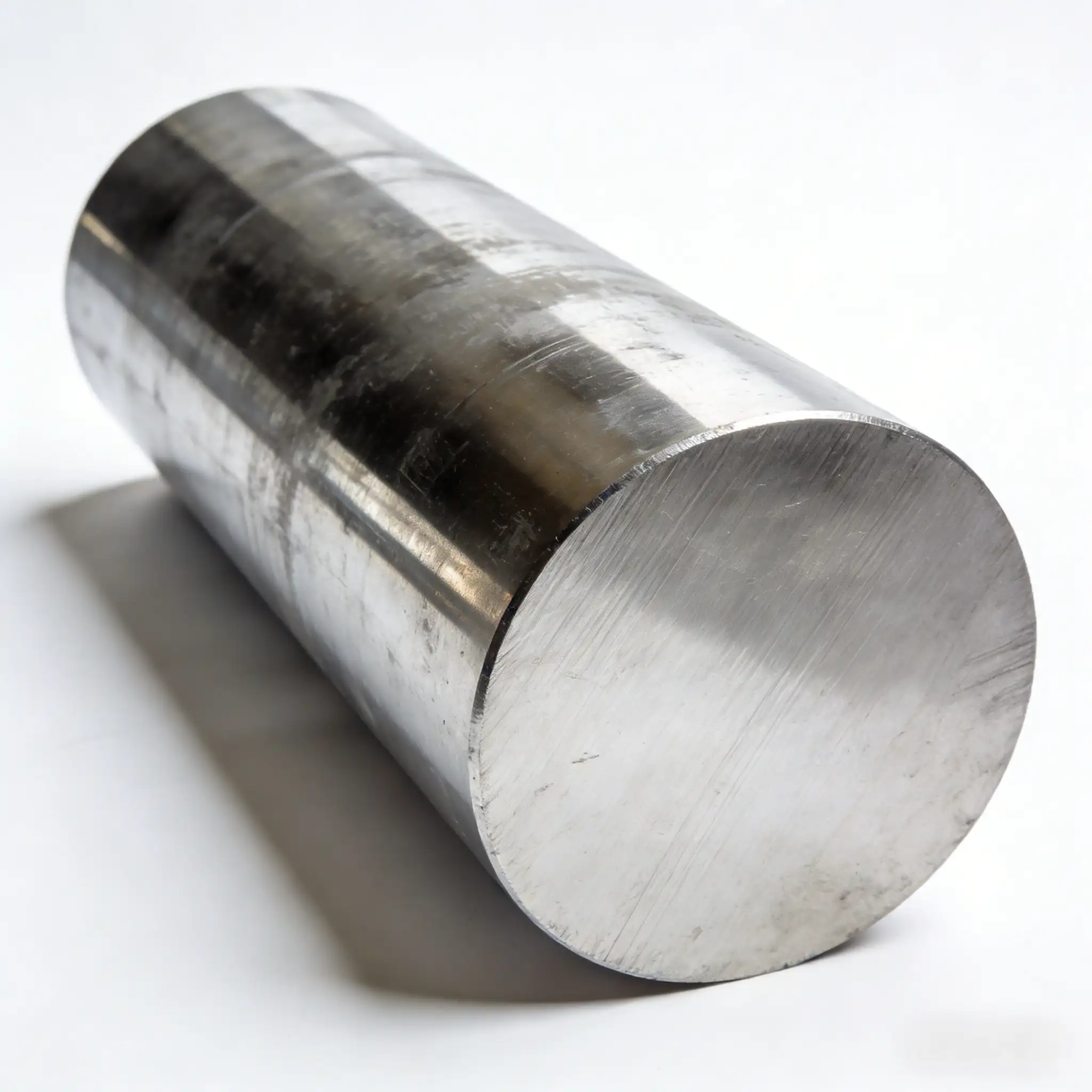

Round Bar: Ø20mm – Ø200mm
Flat Bar: Thickness 10mm – 80mm
Plate: Thickness 8mm – 100mm
Wire Rod: Ø5.5mm – Ø25mm
Hot Forged Products
Forged Round: Ø150mm – Ø800mm
Forged Flat: Thickness 80mm – 500mm
Forged Block: Custom dimensions
Forged Ring: Custom specifications
Custom Sizes Available: For special dimension requirements beyond standard sizes, please contact our sales team. FUSHUN SPECIAL STEEL welcomes bulk orders and can accommodate custom specifications for large volume purchases.
Why Choose FUSHUN SPECIAL STEEL
As an integrated special steel manufacturer, we control every step of production from melting to final processing, ensuring consistent quality and competitive pricing for our customers worldwide.
Advanced Melting Capabilities
In-house ESR (Electroslag Remelting), VIM (Vacuum Induction Melting), and VAR (Vacuum Arc Remelting) for producing premium-grade steel with superior cleanliness and homogeneity.
Integrated Heat Treatment
Complete in-house heat treatment facilities with precise temperature control, ensuring consistent mechanical properties and full traceability documentation.
Surface Finishing Services
Turning (peeled) and grinding services available in-house, reducing your processing time and costs while ensuring dimensional accuracy.
Fast Delivery & Bulk Orders
Vertical integration enables shorter lead times. We welcome large volume orders and provide competitive pricing for long-term partnerships.
