Cathode Steel Bars & Round Steel for Aluminum Electrolysis – Q195, Q215, SAE1006, YT2, FB005 | FUSHUN SPECIAL STEEL Manufacturer
FUSHUN SPECIAL STEEL is a professional manufacturer specializing in high-conductivity cathode steel bars, flat steel, and round steel for anode steel claws. As a leading supplier in the aluminum electrolysis industry, we provide comprehensive steel solutions that meet the demanding requirements of electrolytic aluminum plants worldwide.
Our products are manufactured using refined steel billet resources and proprietary hot rolling processes. Through multiple rolling passes, we achieve exceptional electrical conductivity performance and superior surface quality that satisfies both domestic and international electrolytic aluminum factories.
As a direct manufacturer with over 10 years of industry experience, we welcome bulk orders and provide competitive factory-direct pricing. Our complete specification range covers 160KA–600KA aluminum electrolysis cell types, making us your one-stop solution for all cathode and anode steel requirements.
Product Overview – High-Conductivity Steel for Aluminum Electrolysis
Aluminum electrolysis is an energy-intensive process that requires steel components with excellent electrical conductivity to minimize power losses and maximize efficiency. The cathode steel bars and anode steel claws serve as critical conductive elements in electrolysis cells, directly impacting the overall energy consumption and production costs of aluminum smelting operations.
FUSHUN SPECIAL STEEL manufactures these specialized steel products using carefully selected raw materials and advanced rolling techniques. Our unique hot rolling process involves multiple passes that optimize the steel’s crystalline structure, resulting in lower electrical resistivity and improved conductivity compared to standard steel products.
We offer a complete range of steel grades including Q195, Q215, SAE1006, YT2, and FB005, each with specific resistivity characteristics suited for different applications within the electrolysis cell. Our technical team can recommend the optimal grade based on your specific cell design, operating conditions, and performance requirements.
Four-Dimensional Manufacturing Advantages
Stable Material Source
Our cathode steel bars are supported by refined steel billets with stable and consistent chemical composition. This ensures uniform quality across every production batch, providing reliable performance for your aluminum electrolysis operations.
The strict control of raw material composition minimizes variations in electrical resistivity, allowing for predictable power consumption and consistent cell performance throughout the product lifecycle.
Complete Specifications
FUSHUN SPECIAL STEEL offers the most comprehensive specification coverage in the industry. Our product range fully covers electrolytic aluminum tanks from 160KA to 600KA cell types, meeting all mainstream capacity requirements.
Whether you’re operating small-scale facilities or large industrial aluminum smelters, we have the right dimensions and specifications to match your equipment. Custom sizes are also available upon request.
Flexible Production
Our coordinated production system enables simultaneous manufacturing of round steel and flat steel products. This integrated approach allows for flexible scheduling and optimized delivery times to meet your project deadlines.
For urgent orders, our production planning team can prioritize your requirements and expedite manufacturing. We understand that downtime in aluminum smelting operations is costly, and we’re committed to fast, reliable delivery.
Industry Reputation
With over 10 years of deep cultivation in the aluminum electrolysis sector, FUSHUN SPECIAL STEEL has built a solid reputation based on product quality and customer service excellence.
Our customer base includes major electrolytic aluminum plants across domestic and international markets. The trust and recognition we’ve earned from these long-term partnerships reflect our commitment to quality and reliability.
Quality Certification & Standards
FUSHUN SPECIAL STEEL maintains ISO certification and adheres to international quality standards. All products undergo rigorous testing for chemical composition, mechanical properties, and electrical resistivity before shipment.
Product Classification and Applications

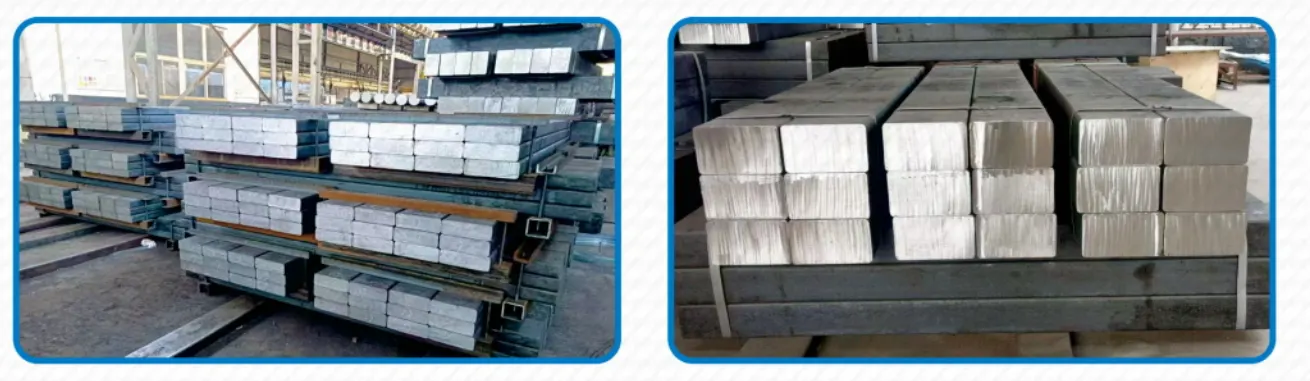

Cathode Steel Bars / Flat Steel – High-Conductivity Solutions
Cathode steel bars are essential components in aluminum electrolysis cells, serving as the primary current conductors that transfer electrical energy to the cathode carbon blocks. The performance of these bars directly affects the cell’s voltage drop and energy efficiency.
FUSHUN SPECIAL STEEL manufactures high-conductivity cathode steel bars using our proprietary hot rolling process. Through multiple rolling passes, we optimize the steel’s microstructure to achieve superior electrical conductivity while maintaining excellent mechanical properties.
Primary Applications
Cathode collector bars, cathode flexible connectors, anode steel claw crossbeams, cell busbar systems
Key Features
Low electrical resistivity, stable chemical composition, excellent surface quality, consistent cross-sectional dimensions

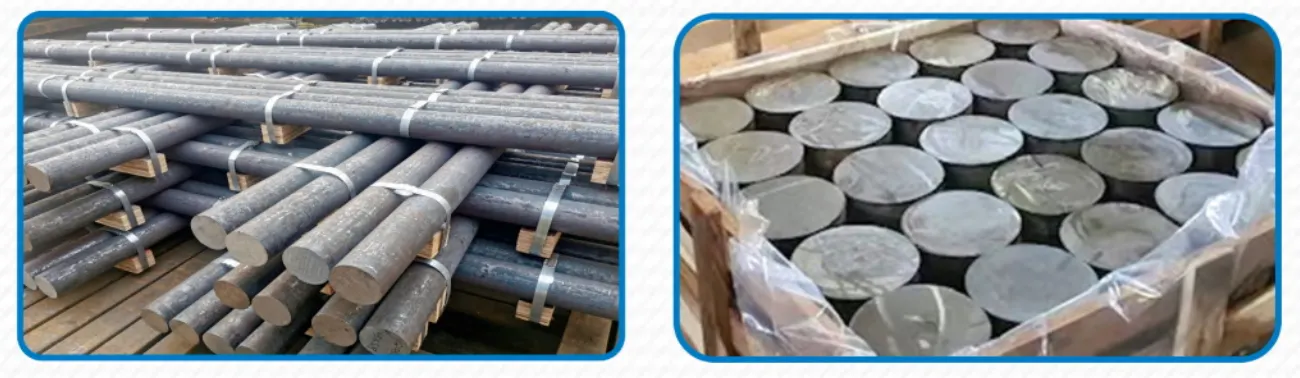

Round Steel for Anode Steel Claws
Anode steel claws are critical connecting components that secure the carbon anode blocks to the anode rod assembly. These claws must provide reliable electrical contact while withstanding the harsh operating environment of the electrolysis cell.
Our round steel products are precision-manufactured to ensure optimal conductivity and mechanical strength. The careful control of material composition and rolling parameters results in round bars with consistent properties throughout their length.
Primary Applications
Anode steel claws, anode connecting rods, anode yoke assemblies, current-carrying structural components
Key Features
Precise diameter tolerance, excellent roundness, uniform resistivity, good machinability for further processing
Steel Grade Specifications & Electrical Resistivity Data
Electrical resistivity is a critical parameter for steel used in aluminum electrolysis applications. Lower resistivity means better electrical conductivity, which translates to reduced voltage drop across the steel components and improved energy efficiency. FUSHUN SPECIAL STEEL offers multiple steel grades with varying resistivity characteristics to match your specific requirements.
| Property | Q195 | Q215 | SAE1006 | YT2 | FB005 Anode Claw Steel |
|---|---|---|---|---|---|
|
Resistivity ×10⁻⁸Ω·m at 20°C |
15.44 | 16.8 | 10.06 | 9.32 | 10.08 |
| Conductivity Rating | Standard | Standard | High | Highest | High |
| Recommended Use | General cathode bars | General cathode bars | High-efficiency cells | Premium applications | Anode steel claws |
Understanding Electrical Resistivity Values
Lower resistivity = Better conductivity. The resistivity values shown above are measured at 20°C standard temperature. YT2 grade offers the lowest resistivity (9.32 ×10⁻⁸Ω·m), making it the optimal choice for applications where maximum conductivity is required.
FB005 Anode Claw Steel is specifically engineered for anode claw applications, providing an optimized balance of electrical conductivity and mechanical strength required for reliable claw performance.
Complete Specification Coverage – 160KA to 600KA Cells
FUSHUN SPECIAL STEEL offers the most comprehensive specification range in the industry, covering aluminum electrolysis cells from 160KA to 600KA capacity. This extensive coverage means we can supply cathode steel bars and round steel for virtually any electrolysis cell type currently in operation.
Full Cell Capacity Range
Both Product Forms Available
Available Product Forms and Shapes
Our Manufacturing Process
FUSHUN SPECIAL STEEL employs a unique hot rolling process that distinguishes our products from standard steel offerings. Our manufacturing approach focuses on achieving optimal electrical conductivity while maintaining consistent quality across all production batches.
Refined Steel Billets
We start with carefully selected refined steel billets with stable chemical composition, ensuring consistent quality from the very beginning of production.
Proprietary Hot Rolling
Our unique hot rolling process utilizes multiple rolling passes to optimize the steel’s crystalline structure for enhanced electrical conductivity.
Quality Control Testing
Every batch undergoes comprehensive testing including chemical analysis, resistivity measurement, and dimensional inspection before approval for shipment.
Surface Finish Excellence
Our process achieves superior surface quality, minimizing contact resistance when the steel is installed in electrolysis cell assemblies.
Why Choose FUSHUN SPECIAL STEEL as Your Manufacturer
Direct Manufacturer Pricing
As a direct manufacturer, we eliminate middlemen and trading companies from the supply chain. This allows us to offer competitive factory-direct pricing, providing significant cost savings especially for bulk orders. The more you order, the more you save.
Complete Specification Range
Our comprehensive product range covers 160KA–600KA cell types with both round steel and flat steel options. This means you can source all your cathode and anode steel requirements from a single reliable supplier, simplifying your procurement process.
Fast & Flexible Delivery
Our flexible production scheduling system enables coordinated manufacturing of round and flat steel products. We can accommodate urgent orders with expedited production, understanding that downtime in aluminum smelting operations is extremely costly.
Proven Industry Experience
With over 10 years of dedicated focus on the aluminum electrolysis sector, we have developed deep expertise in producing steel products that meet the industry’s demanding requirements. Our track record speaks for itself through our many satisfied customers.
Bulk Orders Welcome!
As a professional manufacturer, FUSHUN SPECIAL STEEL is equipped to handle large-volume orders for major aluminum smelting projects. Contact us for volume pricing and customized solutions.
Technical Support & Customer Service
FUSHUN SPECIAL STEEL provides comprehensive technical support to help you select the optimal steel grade and specifications for your specific application. Our experienced team can assist with:
Grade Selection Guidance
Recommendations for the optimal steel grade based on your cell design, operating conditions, and performance requirements.
Custom Specifications
Custom dimensions and specifications available for special projects or non-standard cell designs.
Quality Documentation
Complete quality certificates including material test reports, chemical analysis, and resistivity measurements.
Logistics Coordination
Professional shipping arrangements with experience in international steel product transportation.
Ready to Order? Contact FUSHUN SPECIAL STEEL Today
As a professional manufacturer with over 10 years of industry experience, we welcome bulk orders and provide customized solutions for your aluminum electrolysis projects. Get competitive factory-direct pricing today.
📧 Email: info@fushunspecialsteel.com
📞 Phone: +86-731-89903933
Explore More Products from FUSHUN SPECIAL STEEL
In addition to cathode steel bars and round steel for aluminum electrolysis, we also manufacture a wide range of special steel products including tool steel, stainless steel, nickel alloys, and alloy structural steel.
