Introduction to Copper-Embedded Cathode Steel Bars
Fushun Special Steel Co., Ltd., as a leading manufacturer of special steel products, is proud to present our high-performance Copper-Embedded Cathode Steel Bars designed specifically for electrolytic aluminum production facilities. These precision-engineered components represent the pinnacle of conductor bar technology, combining the structural strength of steel with the superior electrical conductivity of military-grade copper.
Our copper-embedded cathode steel bars are essential components in aluminum smelting operations, serving as the primary current carriers in electrolytic cells. The quality of these bars directly impacts the efficiency, energy consumption, and overall productivity of aluminum production plants. At Fushun Special Steel, we understand the critical nature of these components and have invested heavily in advanced manufacturing capabilities to deliver products that exceed industry standards.
With over two decades of experience in special steel manufacturing and a state-of-the-art production facility covering more than 3,000 square meters, we are your trusted partner for bulk orders of copper-embedded cathode steel bars. Our commitment to quality, precision, and customer satisfaction has established us as a preferred supplier for major aluminum smelting operations worldwide.

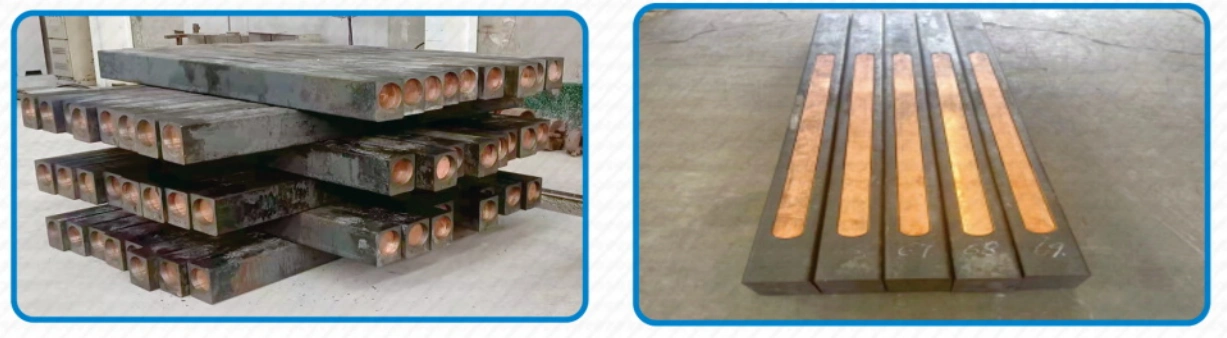

Two Processing Types Available
Deep Drilling Type
Precision deep-hole drilling technology creates perfectly cylindrical channels for copper rod insertion, ensuring optimal contact surface area and superior electrical conductivity throughout the entire length of the bar.
Slotting Type
Advanced CNC slotting machinery creates precise grooves for copper insertion, providing excellent heat dissipation characteristics and allowing for customized copper distribution patterns based on specific application requirements.
Technical Advantages – Why Choose Fushun Special Steel
As a dedicated manufacturer of copper-embedded cathode steel bars, Fushun Special Steel has developed proprietary processing techniques that set our products apart from competitors. Our technical advantages are built on four fundamental pillars that ensure every product leaving our facility meets the highest standards of quality and performance.
01 Precision Custom Procurement
We source high-quality military-grade copper bars specifically tailored to meet each electrolytic aluminum plant’s exact specifications. Our procurement team works directly with certified copper suppliers to ensure consistent material quality for every order.
02 Optimized Interference Fit
Our precision-engineered tight bonding between copper bars and steel bars ensures superior electrical conductivity. The interference fit technology creates permanent mechanical contact that eliminates air gaps and minimizes contact resistance.
03 Scientific Tolerance Design
Our technical team conducts exact calculations for steel bar bore diameters and copper bar dimensions. We set optimal assembly tolerances that guarantee seamless integration and consistent performance across all production batches.
04 Performance Assurance
Rigorous process control achieves flawless contact surfaces, minimizing contact resistance and maximizing current efficiency. Every batch undergoes comprehensive testing to verify electrical and mechanical performance specifications.
Copper-Steel Bar Combination Process
630-Ton Flat Pressing Technology
At the heart of our manufacturing process is a powerful 630-ton flat pressing machine that presses round copper bars into precision-machined steel bars. This advanced pressing technology utilizes the compression and expansion characteristics of copper bars to achieve extremely close contact between the copper and steel components inside the bore holes.
The pressing operation creates an interference fit that mechanically bonds the two metals together without the need for welding or adhesives. This results in a homogeneous conductor assembly with minimal electrical resistance at the copper-steel interface.
Critical Performance Specification
<1mV
Equidistant Voltage Drop
After assembly, every copper-embedded cathode steel bar undergoes rigorous electrical testing. The equidistant voltage drop when tested with 200A DC current is verified to be less than 1mV, meeting and exceeding design requirements for optimal electrical performance in aluminum smelting applications.

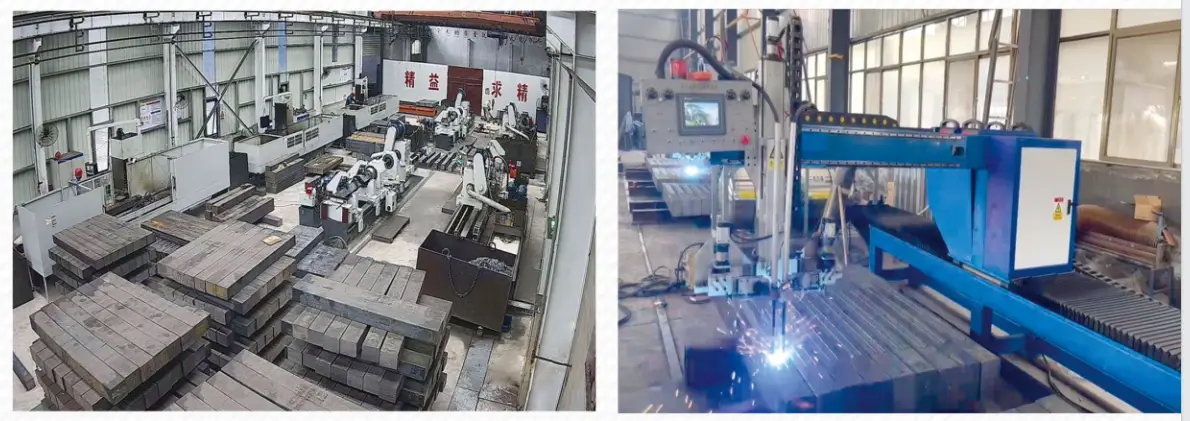

Manufacturing Workshop – Core Advantages Display
Fushun Special Steel’s specialized processing workshop for copper-embedded steel bars covers an impressive area of over 3,000 square meters. We rely on industry-leading intelligent equipment clusters to build an efficient and precise modern production system that supports large-scale bulk orders while maintaining exceptional quality standards.
Workshop Equipment Configuration
6 Units – CNC Deep-Hole Drilling Machines
6 Units – CNC Grooving and Milling Machines
2 Units – Heavy-Duty 500-Ton Presses
1 Unit – CNC Automatic Welding Machine
Production Capacity Highlights
With our full-process CNC production layout, the daily processing capacity exceeds 100 tons. This substantial capacity enables us to handle large-scale production orders while maintaining industry-leading standards through our strict quality control system. Whether you require regular order delivery or customized high-difficulty projects, Fushun Special Steel provides a comprehensive one-stop solution from design to delivery with mature technology and strong production capabilities.
Technical Specifications
| Parameter | Specification | Remarks |
|---|---|---|
| Processing Types | Deep Drilling / Slotting | Customizable per application |
| Copper Grade | Military-Grade Pure Copper | High conductivity certified |
| Press Force | 630 Tons | Flat pressing machine |
| Voltage Drop (200A DC) | < 1mV | Equidistant measurement |
| Daily Capacity | > 100 Tons | Full CNC production line |
| Workshop Area | > 3,000 m² | Specialized processing facility |
| Bonding Method | Interference Fit | Precision-engineered tolerance |
| Quality Standard | Industry-Leading | Strict quality control system |
Application Areas
Copper-embedded cathode steel bars manufactured by Fushun Special Steel are primarily designed for electrolytic aluminum production but find applications across various electrochemical industries. Our products serve critical functions in high-current electrical systems where superior conductivity, durability, and thermal management are essential.
Electrolytic Aluminum Smelting
Primary application in aluminum reduction cells where cathode bars conduct high-amperage DC current. Our bars ensure efficient current distribution and minimize energy losses in the smelting process.
Non-Ferrous Metal Refining
Suitable for copper, zinc, and other non-ferrous metal electrorefining operations requiring reliable high-current conductor bars with excellent corrosion resistance in aggressive electrolyte environments.
Quality Assurance & Testing
At Fushun Special Steel, quality is not just a commitment—it’s the foundation of our manufacturing philosophy. Every copper-embedded cathode steel bar undergoes comprehensive quality assurance procedures throughout the production process and before shipment.
Electrical Testing
200A DC current testing verifies voltage drop specifications. Contact resistance measurements at multiple points ensure uniform conductivity throughout the bar length.
Dimensional Inspection
Precision measurement equipment verifies bore diameters, copper bar dimensions, and overall geometry. All tolerances are documented and certified before shipping.
Material Certification
Complete material traceability with mill test certificates for both steel and copper components. Chemical composition analysis confirms material grade specifications.
Visual & Surface Inspection
Detailed surface quality examination identifies any defects that could affect performance. Contact surfaces are verified for optimal finish characteristics.
Why Partner with Fushun Special Steel?
When you choose Fushun Special Steel as your copper-embedded cathode steel bar supplier, you’re partnering with a direct manufacturer with proven expertise and substantial production capabilities. We welcome bulk orders and offer competitive pricing for large-volume projects.
Direct Manufacturer Advantage
As a manufacturer, we offer factory-direct pricing without middleman markups. Our integrated production facility allows complete control over quality and delivery schedules for your projects.
Bulk Order Capabilities
With daily capacity exceeding 100 tons, we’re equipped to handle large-scale orders for major aluminum smelting projects. Volume discounts available for substantial orders.
Customization Services
We work closely with your engineering team to produce cathode bars matching your exact specifications. Custom dimensions, copper configurations, and special requirements are welcome.
Technical Support
Our experienced engineering team provides comprehensive technical support from product selection through installation guidance. We’re committed to your project’s success.
