Introduction to Explosion Welded Clad Plates
FUSHUN SPECIAL STEEL, as a leading manufacturer of explosion welded clad plates, provides high-performance bimetallic composite materials designed for demanding industrial environments. Explosion welding, also known as explosion bonding or explosive cladding, is a solid-state welding process that uses controlled detonation energy to bond two or more dissimilar metals together at the atomic level.

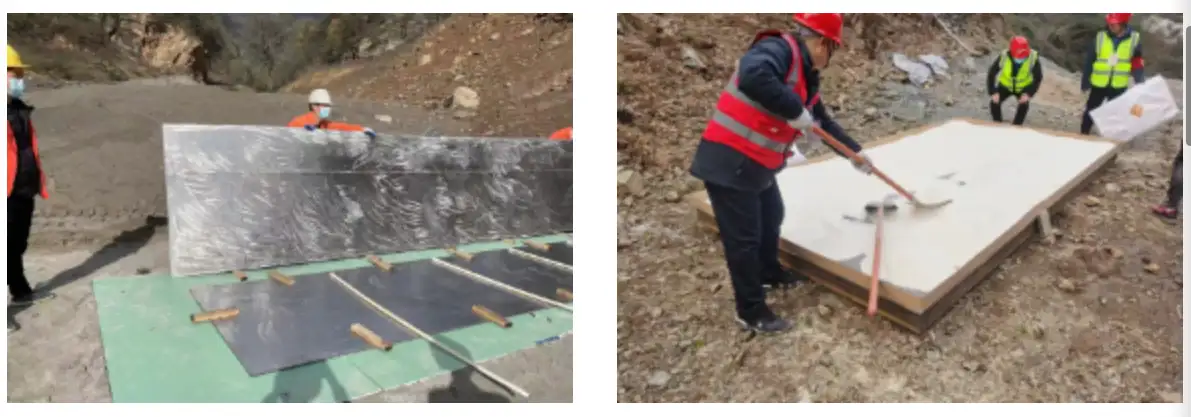

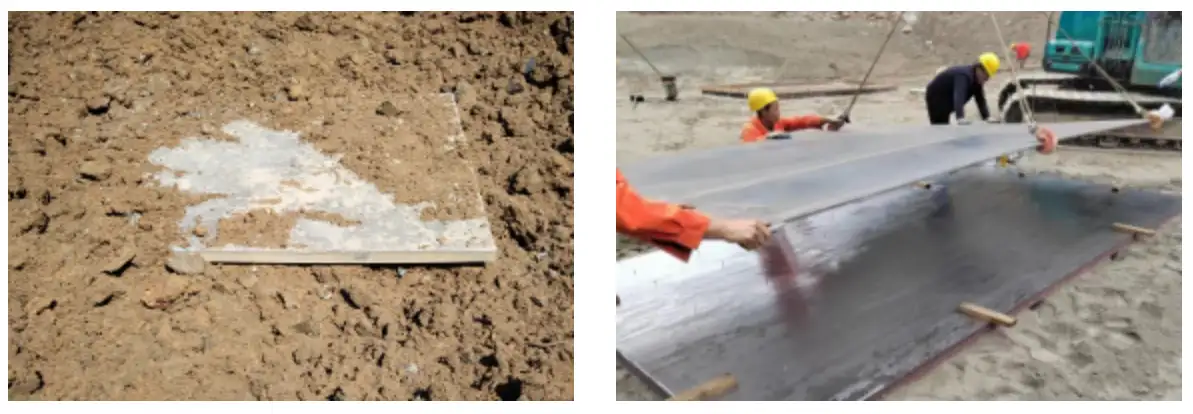

During the explosion welding process, the flyer plate (cladding metal) is accelerated at extremely high velocity toward the base plate. Upon collision at an oblique angle, the metal surfaces are stripped of oxide films through the jetting phenomenon, and under extreme pressure and temperature conditions, the two metals form a metallurgical bond at the atomic level. This creates a wavy interface pattern characteristic of explosion welded joints, providing exceptional bond strength that often exceeds the strength of the parent materials.
As a professional clad plate manufacturer, FUSHUN SPECIAL STEEL produces a comprehensive range of explosion welded composite plates including titanium-steel, titanium-stainless steel, copper-aluminum, copper-steel, and titanium-aluminum clad plates. We welcome bulk orders from global buyers seeking reliable factory-direct supply with competitive pricing.
Complete Range of Explosion Welded Clad Plates
Titanium-Steel Clad Plate
Titanium-steel clad plates combine the excellent corrosion resistance of titanium with the structural strength and cost-effectiveness of carbon steel. Widely used in chemical reactors, pressure vessels, heat exchangers, and marine equipment where resistance to chloride-containing environments is critical.
Titanium-Stainless Steel Clad Plate
This composite material bonds titanium to stainless steel substrate, offering superior corrosion resistance combined with enhanced mechanical properties. Ideal for applications in flue gas desulfurization (FGD) systems, pharmaceutical equipment, and food processing industries.
Copper-Aluminum Clad Plate
Copper-aluminum clad plates provide excellent electrical and thermal conductivity with significant weight reduction compared to solid copper. Extensively used in electrical busbars, battery connectors, heat sinks, and electronic applications where both conductivity and lightweight properties are required.
Copper-Steel Clad Plate
Copper-steel composite plates offer the thermal and electrical conductivity of copper with the structural strength of steel. Applications include sulfuric acid resistant equipment, electrochemical cells, and heat exchanger tube sheets requiring both corrosion resistance and mechanical strength.
Titanium-Aluminum Clad Plate
Titanium-aluminum clad plates combine titanium’s corrosion resistance with aluminum’s lightweight properties. Used in aerospace applications, automotive components, and specialized equipment where weight savings and corrosion protection are equally important.
Key Advantages of FUSHUN SPECIAL STEEL Clad Plates
Superior Bond Strength
Explosion welding creates metallurgical bonds at the atomic level, with bond strength typically exceeding 100% of the weaker parent material. The characteristic wavy interface pattern provides mechanical interlocking that enhances overall joint integrity.
Cost-Effective Solution
By using expensive corrosion-resistant alloys only where needed (as thin cladding layers) and lower-cost structural materials as the base, clad plates provide up to 70% material cost savings compared to solid exotic alloys.
Wide Material Combinations
Explosion welding can bond dissimilar metals that cannot be joined by conventional welding methods, including titanium to steel, aluminum to copper, and other metallurgically incompatible combinations.
Large Size Capability
As a professional manufacturer, FUSHUN SPECIAL STEEL produces large-format clad plates with thickness ranges suitable for heavy industrial applications, pressure vessels, and large-scale equipment manufacturing.
Industrial Applications
Explosion welded clad plates from FUSHUN SPECIAL STEEL are extensively used across multiple industrial sectors. Our products serve critical applications in chemical processing, petrochemical refining, power generation, marine engineering, and specialized manufacturing industries worldwide.
Chemical & Petrochemical Industry
- Pressure vessels and reactors
- Heat exchangers and condensers
- Storage tanks for corrosive media
- Pipeline components and fittings
Power Generation & Environmental
- Flue gas desulfurization (FGD) systems
- Boiler and turbine components
- Condenser tube sheets
- Waste treatment equipment
Marine & Offshore Applications
- Shipbuilding components
- Offshore platform equipment
- Seawater handling systems
- Desalination plant components
Electrical & Electronics
- Electrical busbars and connectors
- Battery transition plates
- Heat sinks and thermal management
- Rail transit electrical components
Technical Specifications
| Product Type | Cladding Material | Base Material | Typical Applications |
|---|---|---|---|
| Titanium-Steel | Gr1, Gr2, Gr5 Titanium | Q235B, Q345R, A516 Gr70 | Pressure vessels, reactors, heat exchangers |
| Titanium-Stainless Steel | Gr1, Gr2 Titanium | 304, 316L, 321 SS | FGD systems, pharmaceutical equipment |
| Copper-Aluminum | T2, TU1, TU2 Copper | 1060, 1100, 6061 Aluminum | Busbars, battery connectors, heat sinks |
| Copper-Steel | T2, TU1 Copper | Q235B, Q345R Carbon Steel | Sulfuric acid equipment, electrochemical cells |
| Titanium-Aluminum | Gr1, Gr2 Titanium | 5052, 6061 Aluminum | Aerospace, automotive, lightweight structures |
Manufacturing Capabilities & Dimensions
Plate Dimensions
- Total Thickness: 6mm – 300mm
- Cladding Thickness: 1mm – 30mm
- Width: Up to 4000mm
- Length: Up to 12000mm
Quality Standards
- ASTM B898 / ASME SB-898
- EN 13445 / PED Compliant
- GB/T 8546 Chinese Standard
- 100% UT Inspection Available
As a dedicated manufacturer, FUSHUN SPECIAL STEEL maintains strict quality control throughout the production process. All clad plates undergo comprehensive testing including ultrasonic testing (UT), shear testing, bend testing, and tensile testing to ensure bond integrity meets or exceeds applicable standards.
Quality Assurance & Testing
Quality is the foundation of our manufacturing philosophy at FUSHUN SPECIAL STEEL. Every explosion welded clad plate we produce undergoes rigorous testing protocols to ensure the highest standards of bond quality and material performance.
Non-Destructive Testing
100% ultrasonic testing (UT) is performed on all clad plates to verify complete bonding across the entire interface area. Any unbonded areas or defects are identified and rejected before shipment.
Mechanical Testing
Shear strength, tensile strength, and bend tests are conducted per applicable standards. Bond shear strength typically exceeds 140 MPa for titanium-steel combinations, demonstrating excellent metallurgical bonding.
Why Choose FUSHUN SPECIAL STEEL as Your Clad Plate Manufacturer?
Direct Manufacturer Advantage
As a direct manufacturer, we offer factory-direct pricing without middleman markups. This translates to significant cost savings for bulk orders while maintaining consistent quality control.
Extensive Product Range
From titanium-steel to copper-aluminum clad plates, we manufacture a comprehensive range of material combinations to meet diverse application requirements across multiple industries.
Bulk Order Capability
We welcome large volume orders and project-based procurement. Our manufacturing capacity supports consistent supply for ongoing industrial projects with reliable delivery schedules.
Technical Support
Our experienced technical team provides material selection guidance, application engineering support, and custom solution development for specialized requirements.
Request a Quote for Explosion Welded Clad Plates
FUSHUN SPECIAL STEEL – Your Trusted Manufacturer for High-Quality Clad Plates
Bulk Orders Welcome | Competitive Factory-Direct Pricing | Global Shipping
Email: info@fushunspecialsteel.com | Tel: +86-731-89903933
Frequently Asked Questions
What is the minimum order quantity for clad plates?
As a manufacturer, FUSHUN SPECIAL STEEL welcomes both sample orders and bulk orders. For optimal pricing, we recommend consolidated orders. Contact us with your specific requirements for a customized quotation.
Can you provide custom material combinations?
Yes, we can produce custom clad plate combinations beyond our standard products. Our technical team will evaluate feasibility and provide solutions for specialized material requirements.
What certifications do your products meet?
Our clad plates can be manufactured to meet international standards including ASTM, ASME, EN, and GB standards. Mill test certificates (MTC) and third-party inspection reports are available upon request.
