P530 Nonmagnetic Steel
P530 Nonmagnetic Steel
1. CHEMICAL COMPOSITION
P530 is a special nonmagnetic, austenitic Mn-Cr-N-steel with a Nickel-content of ≤ 2%.
| C | Mn | Cr | Mo | N | Ni |
| max. 0,05 | 18,50 – 20,00 | 13,00 – 14,00 | 0,40 – 0,60 | 0,25 – 0,40 | max. 2,00 |
2. MECHANICAL PROPERTIES
Following mechanical properties (tested at room temperature) are achieved by a special cold-working process over the full length of the collar:
| TEXT | OD | KSI | N/MM |
| Yield Strength (min.) 0,2%-offset method: | OD less than 4“ | 120 ksi | 830 N/mm² |
| OD 4“ to 91/4“ | 110 ksi | 760 N/mm² | |
| OD 91/2“ and larger | 100 ksi | 690 N/mm² | |
| Tensile Strength | OD less than 4“ | 130 ksi | 900 N/mm² |
| OD 4“ and larger | 120 ksi | 830 N/mm² | |
| Elongation (min.): | 0.25 | 0.25 | |
| Reduction of area (min.): | 0.5 | 0.5 | |
| Impact energy (min.): | 90 ft.lb | 122 J | |
| Hardness Brinell: (min.): | 260-350 HB | 260-350 HB |
3.MAGNETIC PROPERTIES:
Relative permeability: ≤ 1,001.
4. CORROSION RESISTANCE
- Transgranular SCC: Prevented by special surface treatments (Hammer peening, roller burnishing, shot peening).
- Intergranular SCC: The occurrence of material sensitization is prevented by quenching after warmforging. Each collar is tested according to ASTM A 262, Pract.A and E, last edition.
5. NON-DESTRUCTIVE TESTING
- Magnetic inspection: Drill collars are 100% tested by a proprietary probe-testing process using a Förster Magnetomat 1.782. (“Hot Spot“-test). Magnetic permeability of each collar is certified with the printout of probe-testing.
- Ultrasonic inspection: Each collar is ultrasonically inspected over 100% of the volume according to ASTM E 114, last edition as a minimum level.
6. GALLING RESISTANCE
P530 is due to the chemical composition and the special cold working process less susceptible to galling than Cr-Ni steels.

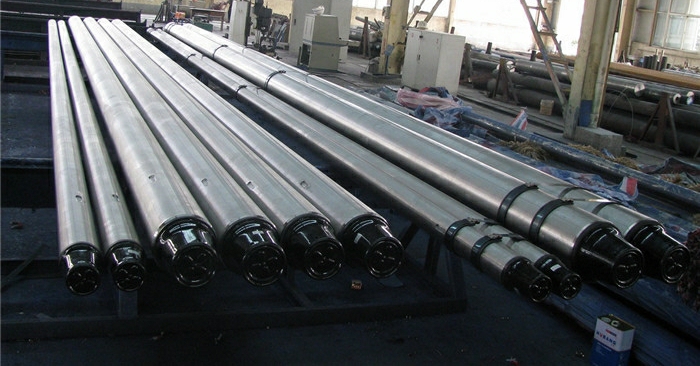

The Non-magnetic drill collar is made of a kind of low carbon high chrome-manganese alloy steel, material normally is P530 or P550 or higher grades, which is refined after strict chemical composition ratio and forged to achieve its mechanical properties, this kind of drill collar has superb mechanical properties of low permeability and high strength. Mainly used for down hole directional drilling.
| Tool Joint | OD INCH | Bore d in + 1/16 -0 |
Length ft +6 -0 |
Bevel Diameter in ±1/64 in |
BSR |
| NC23-31 | 3 1/8 | 1 1/4 | 30 | 3 | 2.57:1 |
| NC26-35 | 3 1/2 | 1 1/2 | 30 | 3 17/64 | 2.42:1 |
| NC35-41 | 4 1/8 | 2 | 30 or 31 | 3 61/64 | 2.43:1 |
| NC35-47 | 4 3/4 | 2 | 30 or 31 | 4 33/64 | 2.58:1 |
| NC38-50 | 5 | 2 1/4 | 30 or 31 | 4 49/64 | 2.38:1 |
| NC44-60 | 6 | 2 1/4 | 30 or 31 | 5 11/16 | 2.49:1 |
| NC44-60 | 6 | 2 13/16 | 30 or 31 | 5 11/16 | 2.84:1 |
| NC44-62 | 6 1/4 | 2 1/4 | 30 or 31 | 5 7/8 | 2.91:1 |
| NC46-62 | 6 1/4 | 2 13/16 | 30 or 31 | 5 29/32 | 2.63:1 |
| NC46-65 | 6 1/2 | 2 1/4 | 30 or 31 | 6 3/32 | 2.76:1 |
| NC46-65 | 6 1/2 | 2 13/16 | 30 or 31 | 6 3/32 | 3.05:1 |
| NC46-67 | 6 3/4 | 2 1/4 | 30 or 31 | 6 9/32 | 3.18:1 |
| NC50-70 | 7 | 2 1/4 | 30 or 31 | 6 31/64 | 2.54:1 |
| NC50-70 | 7 | 2 13/16 | 30 or 31 | 6 31/64 | 2.27:1 |
| NC50-72 | 7 1/4 | 2 13/16 | 30 or 31 | 6 43/64 | 3.12:1 |
| NC56-77 | 7 3/4 | 2 13/16 | 30 or 31 | 7 19/64 | 2.70:1 |
| NC56-80 | 8 | 2 13/16 | 30 or 31 | 7 31/64 | 3.02:1 |
| 6 5/8 REG | 8 1/4 | 2 13/16 | 30 or 31 | 7 45/64 | 2.93:1 |
| NC61-90 | 9 | 2 13/16 | 30 or 31 | 8 3/8 | 3.17:1 |
| 7 5/8 REG | 9 1/2 | 3 | 30 or 31 | 8 13/16 | 2.81:1 |
| NC70-97 | 9 3/4 | 3 | 30 or 31 | 9 5/32 | 2.57:1 |
| NC70-100 | 10 | 3 | 30 or 31 | 9 11/32 | 2.81:1 |
| 8 5/8 REG | 11 | 3 | 30 or 31 | 10 1/2 | 2.84:1 |
