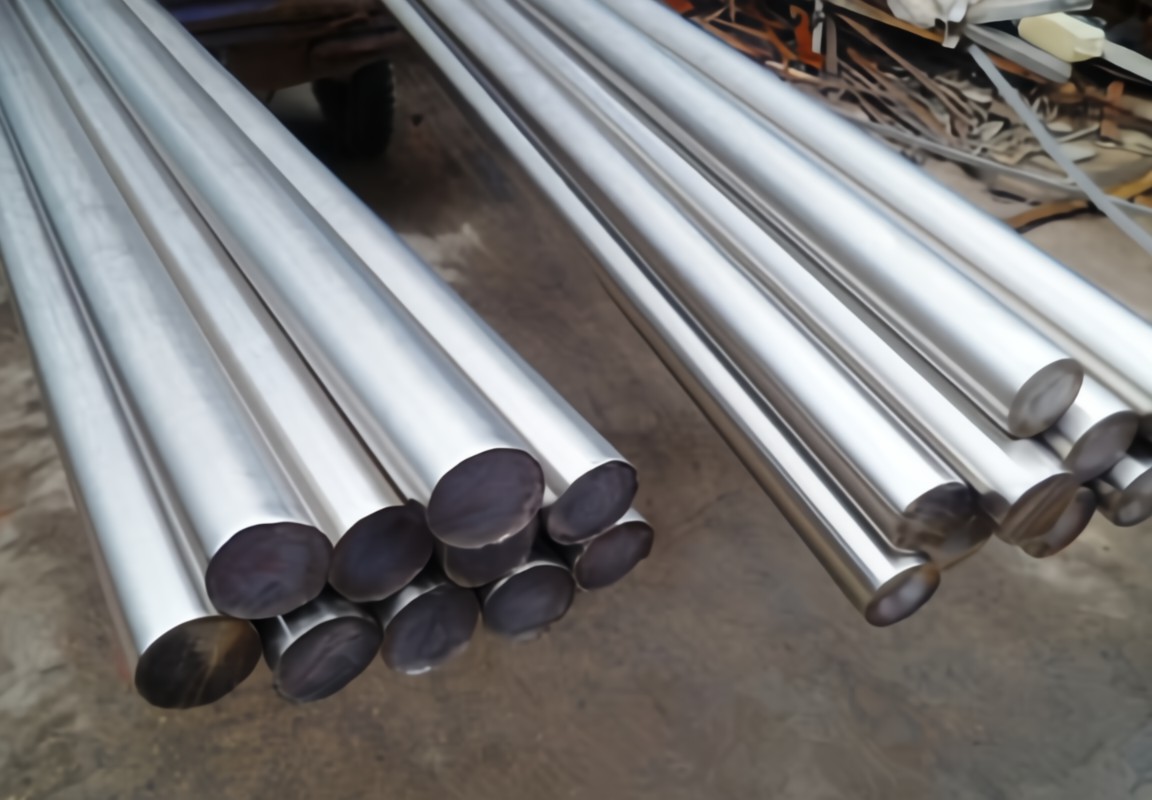

1.4003 X2CrNi12 Ferritic Stainless Steel
Our supply size:
Diameter : 80 to 600 mm ;
Length : 1000 to 9000 mm ;
Our advantage:
- High Quality, Reasonable Price
- Over 40 Years Experience
- ISO NQA Certificated Factory
- Worldwide shipping
- Emergency Orders and Fast Delivery
Chemical composition % of steel X2CrNi12 (1.4003): EN 10088-2-2005
| C | Si | Mn | Ni | P | S | Cr | N |
| max 0.03 | max 1 | max 1.5 | 0.3 – 1 | max 0.04 | max 0.015 | 10.5 – 12.5 | max 0.03 |
Mechanical properties of steel X2CrNi12 (1.4003)
| Rm – Tensile strength (MPa) (+A) | 450-650 |
| Rp0.2 0.2% proof strength (MPa) (+A) | 250-280 |
| KV – Impact energy (J) transverse, (+A) | +20° |
| 50-60 | |
| A – Min. elongation at fracture (%) (+A) | 18-20 |
| Brinell hardness (HB): (+A) | 200 |
Introduce
X2CrNi12 is a stainless steel with ferritic structure, which chemical composition from 0H13, X6Cr13, 1.4006, AISI 410S deviates from the original by a small addition of Nickel, and even more limited content of Carbon. Chromium at a concentration of approx. 12% allows users to use the material as a building material in non-aggressive environments, including decorative purpose.
Application
Steel does not show resistance to acids, chlorides, salts or marine environments to such an advanced extent as austenitic steels. For applications as a corrosion-resistant material, coating of the material and proper surface treatment is required. The products can be used to produce components and decorative elements in the construction industry, or parts of vehicles in the communication and automotive industries.
Smelting Option
1 EAF: Electric Arc Furnace
2 EAF+LF+VD: Refined-smelting and vacuum degassing
3 EAF+ESR: Electro Slag Remelting
4 EAF+PESR: protective atmosphere Electro Slag Remelting
5 VIM+PESR: Vacuum induction melting
Forming Option
1 Hot rolling process
2 Hot Forging: Electro-hydraulic; High-speed-hydraulic; Oil-hydraulic; Precision-forging
Heat-treatment Option
1 +A: Annealed (full/soft/spheroidizing)
2 +N: Normalized
3 +NT: Normalized and tempered
4 +QT: Quenched and tempered (water/oil)
Surface Option
1 Black Surface
2 Grounded: Bright but rough ; Not precision
3 Machining for plate: Bright and precision; Little turning scar
4 Peeled/Turned: Bright and precision; Little turning scar
5 Polished: Very Bright and precision size; Not turning scar
Other Services
1 Cutting: Small pieces
2 CNC Machine: Produce as your drawing
3 Package: Bare/Nylon/Canvas/Wooden
4 Payment:T/T, L/C, O/A(request credit)
5 Transport:FOB/CFR/CIF/DDU/DDP (train/ship/Air)
Mill test certificate
EN 10204/3.1 with all relevant data reg. chem. composition, mech. properties and results of testing.
We also supply :
1.2510/H10, 1.2842, 1.2379/D2, 1.2080/X210Cr12/D3, 1.2436, 1.2365, 1.2885, 1.2343, 1.2344/H13/SKD61, 1.2581/H21, 1.2709, 1.2345, 1.2738/P20NI, 1.2083/420J2, 1.2316, 1.2312/P20S, 1.2311, 1.2764
For all products, please check here: Fushun products
