4130 P+X Alloy Steel

P+X is a heat treatment condition, not a grade.
4130 in the P+X condition is normalised, then stress relieved, then straightened and stress relieved again. It is specified
on aerospace airframe drawings that call for a minimum 75 ksi yield with a controlled residual stress state, so that a
welded tube assembly does not move during machining. If you need 4130 to a different condition, or the chemistry,
hardenability and welding data for the grade itself, the
4130 grade page covers it. This page is only about P+X.

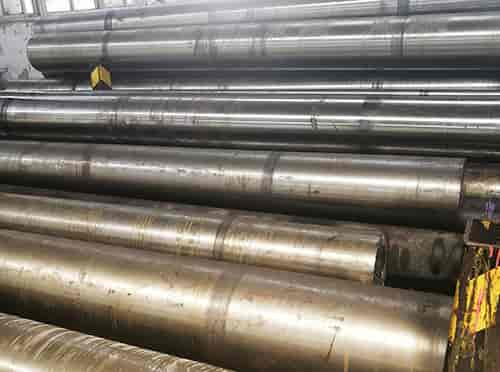

4130 P+X Alloy Steel

4130 p x alloy steel

4130 p x alloy steel



Introduce

AISI 4130 75K, PSL 3, API 6A Standards, Temperature Class P+X, NACE MR0175:2015



Chemical Composition

Grade C Mn Cr Mo Si P S Ni Cu V H max. ppm
Min. 0.280 0.400 0.800 0.150 0.150 – – – – – –
Max. 0.330 0.600 1.100 0.250 0.350 0.025 0.025 0.350 0.350 0.300 2.000



Heat Treatment

Normalizing temperature Time Austenizing temperature Time Tempering temperature Time
Min. 1620℉ (899℃) Min. 60 minutes 1575 – 1625℉

(857 – 885℃)

Min. 60 minutes Min. 1238℉ (670℃) Min. 60 minutes

Oil or Polymer or Water. For Water Quenching, the temperature of water shall not exceed 38℃ (100℉) at start of quench. For bath-type quenching, the temperature of water shall not exceed 49℃(120℉) at any time during the quench cycle.

Mechanical Properties

as per ASTM E21-20 for P+X Grade

Yield strength

minimum (0.2%)

Tensile strength minimum Elongation in

2” (minimum)

Reduction Area

(minimum)

75 ksi (517MPa) 95 ksi (655 MPa) 18% 35%



Quality Inspection

  • Specimen test location & QTC
  • Charpy V-notch impact
  • Hardness as per ASTM E10-18: On surface / 1”below surface
  • Volumetric NDE 100% – Ultrasonic
  • Minimum hot work reduction ratio 4.0 to 1
  • Grain size should be #S or Finer as per ASTM E112 – 13
  • Surface inspection
