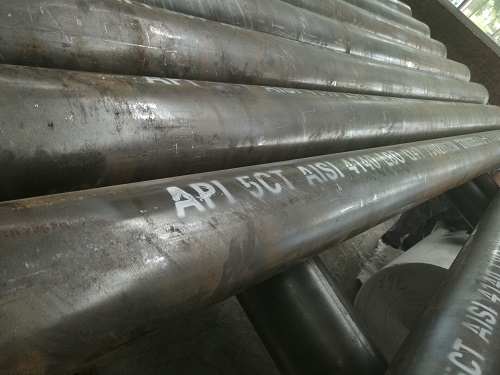

AISI 4140 L80 Alloy Steel

AISI 4140 L80 Alloy Steel

AISI 4140 L80 Alloy Steel

Introduce

AISI 4140 80K, PSL 3, API 5CT Standards, NACE MR0175:2015



Chemical Composition

Grade C Mn Cr Mo Si P S Ni Cu V H max. ppm
Min. 0.380 0.750 0.800 0.150 0.150 – – – – – –
Max. 0.430 1.000 1.100 0.250 0.350 0.025 0.025 0.250 0.300 0.300 2.000



Heat Treatment

Austenizing temperature Time Tempering temperature Time
1600 ±25℉

(871 ±14℃)

Min. 60 minutes 1250 ±50℉

(677 ±27℃)

Min. 60 minutes

Oil or Polymer or Water. For Water Quenching, the temperature of water shall not exceed 38℃ (100℉) at start of quench. For bath-type quenching, the temperature of water shall not exceed 49℃(120℉) at any time during the quench cycle.

Mechanical Properties

as per ASTM A370 -20

Yield strength



Tensile strength minimum Elongation in

2” (minimum)

Reduction Area

(minimum)

Min. 80,000 psi (552 MPa)

Max. 95,000 psi (655 MPa)

100,000 psi (690 MPa) 18% 35%



Quality Inspection

  • Specimen test location & QTC
  • Charpy V-notch impact at 21℃ / -32℃ / -60℃
  • Hardness as per ASTM E10-18: On surface / 1”below surface
  • Volumetric NDE 100% – Ultrasonic
  • Minimum hot work reduction ratio 4.0 to 1
  • Grain size should be #S or Finer as per ASTM E112 – 13
  • Surface inspection



L80 in the casing grade hierarchy, by yield strength and environment.
Figure 1: L80 in the casing grade hierarchy, by yield strength and environment.

What L80 is

L80 is an API 5CT casing and tubing grade with a minimum yield strength of 80 ksi, made from a chromium-molybdenum steel in the 4140 family, quenched and tempered. It sits between the as-rolled J55/K55 and the higher-strength P110, and it is the grade most often chosen when a well needs more strength than J55 but does not justify the cost of a corrosion-resistant alloy.

The variants that matter

L80 exists in more than one form, and they are not interchangeable in sour service. The carbon-molybdenum type is restricted to a lower hardness for H2S service, and there is a separate 13 % chromium variant sold as L80-13Cr, which is a stainless and behaves completely differently.

An order that says “L80” without stating the type or the environment leaves the mill to guess — and the two answers look identical on a certificate until the tube is in the well.

What to specify

  • Grade and type, plus the API 5CT edition
  • Environment: H2S partial pressure, CO2, chlorides, temperature — so the sour-service acceptability can be checked against ISO 15156
  • Connection type, and whether coupling stock is included
  • Whether the tube is plain-end or threaded, and the thread form
